Svetsbar dragögla 40mm (30mm tjock) med skaft 65x56mm från Scharmüller av Kespa AB Dragögla 7583

SKU: 7583

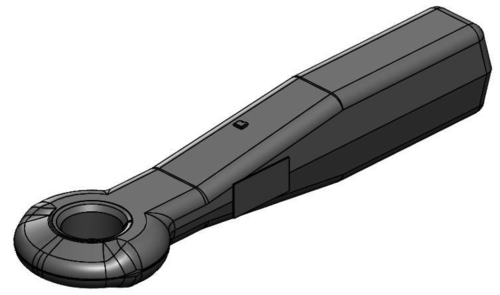

Weld-on drawbar eye 40mm (30mm thick) with shaft 65x56mm from Scharmüller

Incl. VAT Excl. VAT

€105,95 EUR
€84,76 EUR

✓ Quality parts

✓ Free shipping from 100€

⛟ Available Now!

Approved according to E1 55R-01 3067. Total length 390 mm, of which 137.5 mm is weldable. The square part of the tow bar has a cross-section of 65x56mm. Rated for vertical load 1350 kg. To achieve this, it must be welded with 4 weld seams that are at least 130mm long and 8mm wide. Y4220 is the recommended electrode. Must be heated to 250 °C before welding (according to DIN 74054). and the tow bar should heat

Reference no. Fits Related Products Characteristics Relevant categories

00.651.10.0

Et al.

OEM partnumbers only as a reference.

    Dc-värde: 125 kN

    Dragögle-Ø: 40 mm

    Fabrikat: Scharmüller

    Skaft: 65x56

    V-Värde: 30 kN

    Vertikal last: 1350 kg
