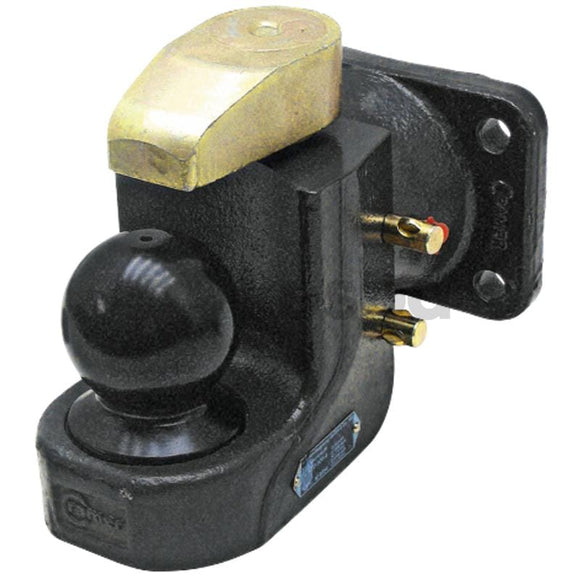

Ball joint 80mm swivel with flange 140x80 M16 from Walterscheid

Incl. VAT Excl. VAT

€1.862 95 EUR

Since it is rotatable, it is used advantageously on combine harvesters. The coupling ball with flange corresponds to ISO 24347, VO (EU) 2015/208 and UN ECE R147, class a80 in terms of dimensions and area of ​​application. In its normal position, the unit is coupled and secured. The flange coupling can be swiveled 360°, the torque required for this is 100 - 150 Nm. The area of ​​application extends to use on agricultural or forestry tractors. Product advantages Flange ball with anti-rotation protection. Holder adjustable without tools Forged connecting flange with anti-roll function The ball products in the KFD800 model series from WALTERSCHEID with their unique anti-roll function. The design specially adapted for this case allows the ball holder to rotate when connected to the spherical cap, which prevents the tractor and trailer from separating from each other, but only if a preset torque is exceeded. In normal trailer operation, the "quasi" model is to be considered rigid. Users often use conventional retractable ball products, which are designed by the manufacturer for attachment under the power take-off, even in top attachment. In a fall, the retaining device on these models bends up or breaks and the tractor and implement separate from each other.
