Scharmüller SKU: 7585

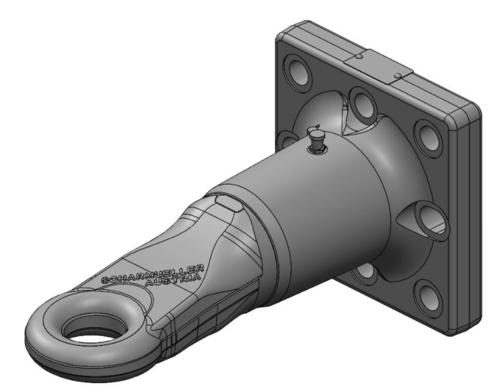

50mm rotatable hitch ring with flange 145x145 type-approved from Scharmüller

Mounting
145 × 145 M20 mm
D-value
102,4 kN
€495,96 EUR Excl. VAT €619,95 EUR Incl. VAT
⛟ Available Now!

✓ Quality parts

✓ Free shipping from 100€

Characteristics
D-value
102,4 kN
Tow eye diameter
50 mm
Brand
Scharmüller
Hole pattern
145x145 M20 mm
Längd
332 mm
Type approval number
e1 00612 ND
Vertical load
3000 kg
Weight
24000 g
Reference no.

00.654.48.1-A02 00654481A02 Etc.

OEM partnumbers only as a reference.

About the product

Approved according to VO (EU) 2015/208. Max 3000kg vertical load and 102.4 kN D-value. Total length 295mm from the rear edge to the center of the eye is 332mm. Suitable for, among others, Metsjö trailers.
