Characteristics
- D-value
- 190 kN
- Dc-value
- 120 kN
- Tow eye diameter
- 57 mm
- Brand
- VBG
- Coupling category (EU)
- S
- Type approval number
- E4*55R-010319
- V-Value
- 40 kN
- Vertical load
- 1000 kg
- Weight
- 12200 g
Reference no.
15-016000 DBE 160 Etc.
OEM partnumbers only as a reference.
About the product

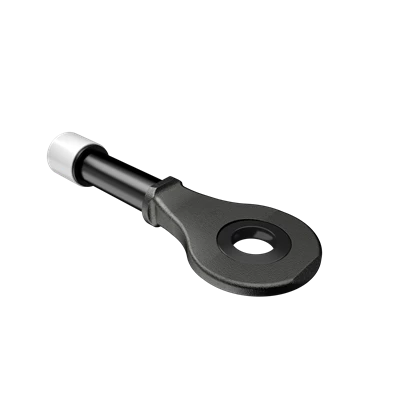

Heavy-duty towing eye from VBG with replaceable bushing. Mounted in a sleeve (7491) that is welded to the drawbar. Supplied complete with nut. This should be tightened with a torque of 1500-2000Nm during assembly and secured with the associated pin.
