Scharmüller SKU: 7583

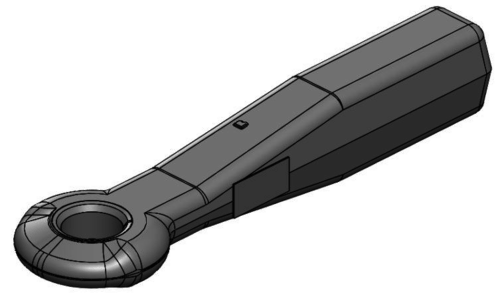

Weld-on drawbar eye 40mm (30mm thick) with shaft 65x56mm from Scharmüller

€82,36 EUR Excl. VAT €102,95 EUR Incl. VAT
⛟ Available Now!

✓ Quality parts

✓ Free shipping from 100€

Characteristics
Dc-value
125 kN
Tow eye diameter
40 mm
Brand
Scharmüller
Skaft
65x56
V-Value
30 kN
Vertical load
1350 kg
Reference no.

00.651.10.0 Et al.

OEM partnumbers only as a reference.

About the product

Approved according to E1 55R-01 3067. Total length 390 mm, of which 137.5 mm is weldable. The square part of the tow bar has a cross-section of 65x56mm. Rated for vertical load 1350 kg. To achieve this, it must be welded with 4 weld seams that are at least 130mm long and 8mm wide. Y4220 is the recommended electrode. Must be heated to 250 °C before welding (according to DIN 74054). and the tow bar should heat
