SKU: 7581

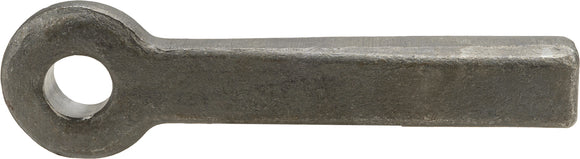

Weld-on drawbar eye 40mm

Connection type
Ögla 40mm
D-value
32 kN
€82,36 EUR Excl. VAT €102,95 EUR Incl. VAT
⛟ Available Now!

✓ Quality parts

✓ Free shipping from 100€

Characteristics
D-value
32 kN
Tow eye diameter
40 mm
Mounting
Svetsbart
Connection type
Ögla 40mm
Skaft
50x50
Vertical load
550 kg
Weight
5040 g
Reference no.

Et al.

OEM partnumbers only as a reference.

About the product

Approved according to e1-00177ND. Total length 300 mm, of which 90 mm is weldable. The square part of the drawbar has a cross-section of 50x50mm. Rated for vertical load 760kg up to 40km/h and 550 kg over 40 km/h.
